These WNMG Turning Inserts can deal with multiple operations by combining different chip breakers and grades. Recommended for rough, semi-finishing and finishing of machining most steels, stainless steels, cast irons and super alloys under stable conditions.
Product Information:

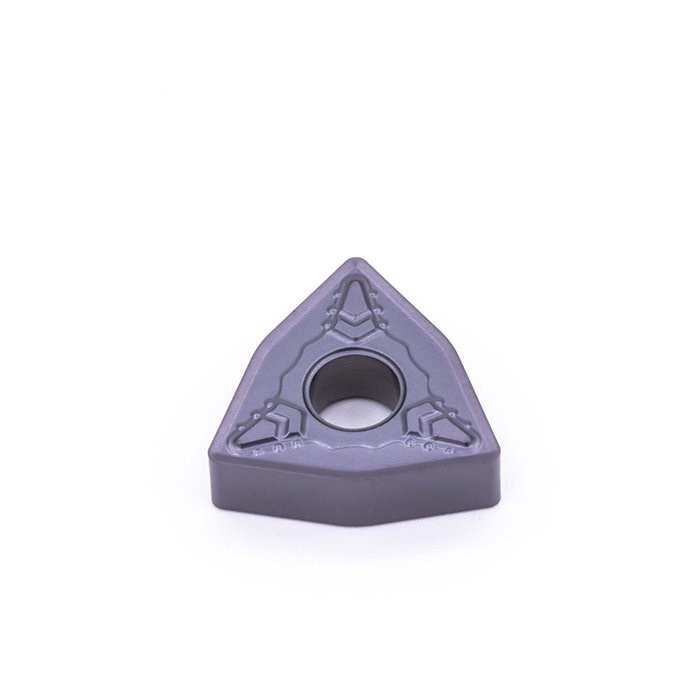

WNMG Turning Inserts 80° Insert double-sided inserts with negative (0°) relief angle, offering a strong edge for general applications and varying depths of cut dependent on chip breaker type across most materials. WNMG Turning Inserts can deal with multiple operations by combining different chip breakers and grades.it’s highly economical choice for your production, since they are made symmetrically, so that when the one cutting edge is worn they can rotate to another edge.
Specifications：
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT4235 | VT4335 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | ||||
P Semi Finishing | WNMG080404-AM | 0.60-4.30 | 0.10-0.30 | • | O | • | O | O | |||||||
WNMG080408-AM | 1.20-4.30 | 0.20-0.60 | • | O | • | O | O | ||||||||
WNMG080412-AM | 1.80-4.30 | 0.30-0.90 | • | O | • | O | O | ||||||||
WNMG080416-AM | 2.40-4.30 | 0.40-1.20 | • | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4215 | VT4225 | VT4325 | VT4235 | VT4335 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | ||||
P Rough Machining | WNMG060408-AR | 0.80-4.00 | 0.15-0.50 | • | O | ||||||||||
WNMG060412-AR | 0.80-4.00 | 0.15-0.50 | • | O | |||||||||||
WNMG080408-AR | 0.80-4.50 | 0.15-0.55 | • | O | |||||||||||
WNMG080412-AR | 0.80-4.50 | 0.20-0.55 | • | O | |||||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | VY1525 | VY1330 | ||||
M Finishing | WNMG060404-BF | 0.25-2.40 | 0.05-0.15 | • | • | O | O | ||||||||
WNMG060408-BF | 0.50-2.40 | 0.10-0.30 | • | • | O | O | |||||||||
WNMG080404-BF | 0.25-3.20 | 0.05-0.15 | • | • | O | O | |||||||||
WNMG080408-BF | 0.50-3.20 | 0.10-0.30 | • | • | O | O | |||||||||
WNMG080412-BF | 0.75-3.20 | 0.15-0.45 | • | • | O | O | |||||||||
WNMG080416-BF | 1.05-3.20 | 0.20-0.60 | • | • | O | O | |||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | VY1525 | VY1330 | ||||
M Semi Finishing | WNMG060404-BM | 0.30-2.10 | 0.10-0.30 | O | O | • | O | O | |||||||
WNMG060408-BM | 0.65-2.10 | 0.15-0.45 | O | O | • | O | O | ||||||||
WNMG080404-BM | 0.30-2.90 | 0.10-0.30 | O | O | • | O | O | ||||||||
WNMG080408-BM | 0.65-2.90 | 0.15-0.45 | O | O | • | O | O | ||||||||
WNMG080412-BM | 0.95-2.90 | 0.20-0.60 | O | O | • | O | O | ||||||||
WNMG080416-BM | 1.25-2.90 | 0.25-0.75 | O | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | VY1528 | VY1330 | ||||
M Rough Machining | WNMG060404-BR | 0.30-2.10 | 0.10-0.30 | O | O | O | • | • | O | ||||||
WNMG060408-BR | 0.65-2.10 | 0.15-0.45 | O | O | O | • | • | O | |||||||
WNMG080404-BR | 0.30-2.90 | 0.10-0.30 | O | O | O | • | • | O | |||||||
WNMG080408-BR | 0.65-2.90 | 0.15-0.45 | O | O | O | • | • | O | |||||||
WNMG080412-BR | 0.95-2.90 | 0.20-0.60 | O | O | O | • | • | O | |||||||
WNMG080416-BR | 1.25-2.90 | 0.25-0.75 | O | O | O | • | • | O | |||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||
CVD | |||||||
VT3020 | VT3040 | VT3315 | VT3415 | ||||
K Semi Finishing | WNMG080404-CM | 0.08-0.25 | 0.40-2.90 | • | • | ||
WNMG080408-CM | 0.15-0.45 | 0.80-2.90 | • | • | |||
WNMG080412-CM | 0.25-0.66 | 1.20-2.90 | • | • | |||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||||
| CVD | PVD | |||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1520 | VY1525 | VY1028 | VY1330 | ||||
S Semi Finishing | WNMG080404-DM | 0.40-4.30 | 0.08-0.25 | O | O | O | • | • | O | O | ||||||
WNMG080408-DM | 0.80-4.30 | 0.15-0.45 | O | O | O | • | • | O | O | |||||||
WNMG080412-DM | 1.20-4.30 | 0.25-0.66 | O | O | O | • | • | O | O | |||||||
WNMG080416-DM | 1.60-4.30 | 0.30-0.90 | O | O | O | • | • | O | O | |||||||
• : Recommended Grade
O: Optional Grade
Application:
These WNMG Turning Inserts can deal with multiple operations by combining different chip breakers and grades. Recommended for rough, semi-finishing and finishing of machining most steels, stainless steels, cast irons and super alloys under stable conditions.
FAQ:
What are your main products?
Estool cutting tools company’s main product are turning insert.milling insert.drilling insert.threading inserts.grooving inserts and aluminium machining inserts.
How long do carbide inserts last?
Carbide lathe tools are stronger than high-speed steel tools, you can rotate the cutting edge to make them last longer.
The metal cutting insert is a versatile cutting tool suitable for a wide range of machining operations. It offers excellent cutting performance and tool life, making it a popular choice among machinists. This insert is commonly used in industries such as general machining, mold making, and die casting.
