:DNMG cutting tool used for grooving, profiling, finishing, and other machining applications.First choice for external turning of slim workpieces of all types of steel, suitable for medium finishing and finishing.
Product Information:

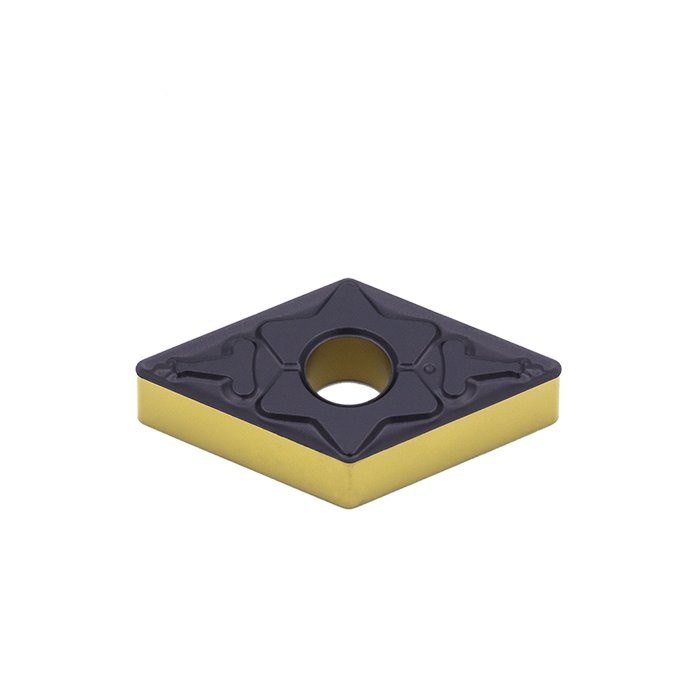

Turing insert DNMG. Double-Sided 55° Rhombic Inserts. Clearance angle 0°. Optimized substrate and coating combination for top performance. Geometry of insert optimized for machining application. Grade and geometry provide process reliability. Excellent wear detection ensures all edges are used.With a range of different sizes available, we make it easy to select the ideal turning insert for your planned applications.
Specifications:
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT4235 | VT4335 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | ||||
P Semi Finishing | DNMG150404-AM | 0.60-5.40 | 0.10-0.30 | • | O | • | O | O | |||||||
DNMG150408-AM | 1.20-5.40 | 0.20-0.60 | • | O | • | O | O | ||||||||
DNMG150412-AM | 1.80-5.40 | 0.30-0.90 | • | O | • | O | O | ||||||||
DNMG150604-AM | 0.60-5.40 | 0.10-0.30 | • | O | • | O | O | ||||||||
DNMG150608-AM | 1.20-5.40 | 0.20-0.60 | • | O | • | O | O | ||||||||
DNMG150612-AM | 1.80-5.40 | 0.30-0.90 | • | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT4235 | VT4335 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | ||||
P Rough Machining | DNMG150408-AR | 0.80-4.0 | 0.15-0.50 | • | O | ||||||||||
DNMG150412-AR | 1.20-4.0 | 0.15-0.65 | • | O | |||||||||||
DNMG150608-AR | 0.80-4.0 | 0.15-0.50 | • | O | |||||||||||
DNMG150612-AR | 1.20-4.0 | 0.15-0.65 | • | O | |||||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | VY1525 | VY1330 | ||||
M Finishing | DNMG150404-BF | 0.25-2.90 | 0.05-0.15 | • | • | O | O | ||||||||
DNMG150408-BF | 0.50-2.90 | 0.10-0.30 | • | • | O | O | |||||||||
DNMG150412-BF | 0.75-2.90 | 0.15-0.45 | • | • | O | O | |||||||||
DNMG150604-BF | 0.25-2.90 | 0.05-0.15 | • | • | O | O | |||||||||
DNMG150608-BF | 0.50-2.90 | 0.10-0.30 | • | • | O | O | |||||||||
DNMG150612-BF | 0.75-2.90 | 0.15-0.45 | • | • | O | O | |||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | VY1525 | VY1330 | ||||
M Semi Finishing | DNMG150404-BM | 0.30-3.90 | 0.08-0.25 | O | O | • | O | O | |||||||
DNMG150408-BM | 0.65-3.90 | 0.15-0.45 | O | O | • | O | O | ||||||||
DNMG150412-BM | 0.95-3.90 | 0.25-0.65 | O | O | • | O | O | ||||||||
DNMG150604-BM | 0.30-3.90 | 0.08-0.20 | O | O | • | O | O | ||||||||
DNMG150608-BM | 0.65-3.90 | 0.15-0.45 | O | O | • | O | O | ||||||||
DNMG150612-BM | 0.95-3.90 | 0.25-0.65 | O | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1325 | VY1528 | VY1330 | ||||
M Rough Machining | DNMG150404-BR | 0.30-3.90 | 0.08-0.25 | O | O | O | • | • | O | ||||||
DNMG150408-BR | 0.65-3.90 | 0.15-0.45 | O | O | O | • | • | O | |||||||
DNMG150412-BR | 0.95-3.90 | 0.25-0.65 | O | O | O | • | • | O | |||||||
DNMG150604-BR | 0.30-3.90 | 0.08-0.20 | O | O | O | • | • | O | |||||||
DNMG150608-BR | 0.65-3.90 | 0.15-0.45 | O | O | O | • | • | O | |||||||
DNMG150612-BR | 0.95-3.90 | 0.25-0.65 | O | O | O | • | • | O | |||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | CVD | |||
VT3020 | VT3040 | VT3315 | VT3415 | ||||
K Semi Finishing | DNMG150404-CM | 0.40-3.90 | 0.08-0.25 | • | O | ||
DNMG150408-CM | 0.80-3.90 | 0.15-0.45 | • | O | |||
DNMG150412-CM | 1.20-3.90 | 0.25-0.65 | • | O | |||
DNMG150604-CM | 0.40-3.90 | 0.08-0.20 | • | O | |||
DNMG150608-CM | 0.80-3.90 | 0.15-0.45 | • | O | |||
DNMG150612-CM | 1.20-3.90 | 0.25-0.65 | • | O | |||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||||
| CVD | PVD | |||||||||||||||
VT4215 | VT4315 | VT4225 | VT4325 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1520 | VY1525 | VY1028 | VY1030 | ||||
S Semi Finishing | DNMG150404-DM | 0.40-3.90 | 0.08-0.25 | O | O | O | • | • | O | O | ||||||
DNMG150408-DM | 0.80-3.90 | 0.15-0.45 | O | O | O | • | • | O | O | |||||||
DNMG150412-DM | 1.20-3.90 | 0.25-0.65 | O | O | O | • | • | O | O | |||||||
DNMG150604-DM | 0.40-3.90 | 0.08-0.20 | O | O | O | • | • | O | O | |||||||
DNMG150608-DM | 0.80-3.90 | 0.15-0.45 | O | O | O | • | • | O | O | |||||||
DNMG150612-DM | 1.20-3.90 | 0.25-0.65 | O | O | O | • | • | O | O | |||||||
• : Recommended Grade
O: Optional Grade
Application:
DNMG cutting tool used for grooving, profiling, finishing, and other machining applications.
First choice for external turning of slim workpieces of all types of steel, suitable for medium finishing and finishing.
FAQ:
How to choose correct turning insert?
Select insert geometry based on selected operation, for example finishing.
Select the largest possible nose angle on the insert for strength and economy.
Select the insert size depending on the depth of cut
Select the largest possible nose radius for insert strength.
What is the difference between face milling and end milling?
These are two of the most prevalent milling operations, each using different types of cutters – the and mill and the face mill. The difference between end milling and face milling is that an end mill uses both the end and the sides of the cutter, whereas face milling is used for horizontal cutting.
The DNMG insert is a widely used turning insert known for its versatility and performance. It is designed to provide excellent chip control and surface finish. This insert is commonly used in turning operations to shape and finish various materials, including steel, stainless steel, and cast iron.
