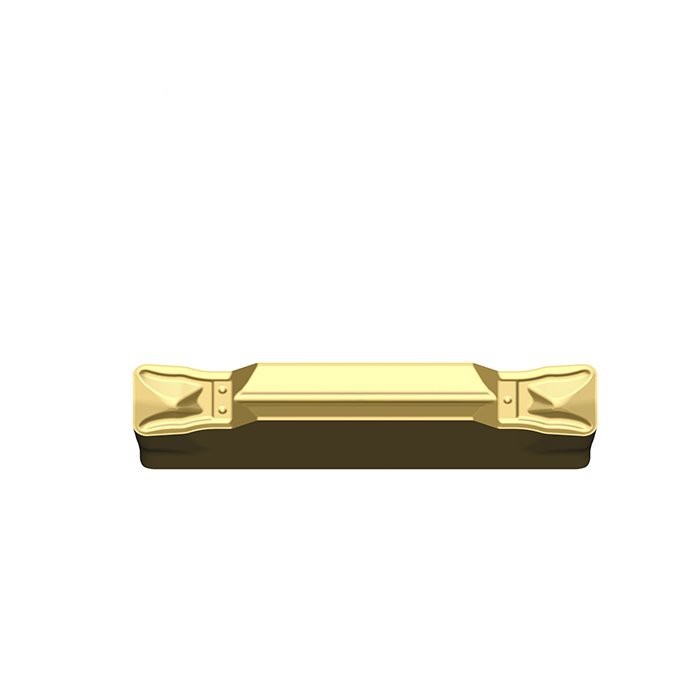

ECMN Parting And Grooving Insert for Precise and Clean Cuts

Cutting width is 3mm, 4mm, 5mm, 6mm, CVD and PVD coating, for both parting and Grooving.

  • Usage: Turning Inserts

  • Model Number: ECMN

  • Chip-Breakers: -T

ECMN Parting And Grooving Insert for Precise and Clean Cuts Details

Product Information:

Specially designed chip breaker allows for narrower chips to promote better chip flow. Specifically designed for grooving applications. Offers a wide range of applications including steel, stainless steel continuous cutting and interrupted cutting.


Specifications:

Type

Fn

(mm/rev)

Grade

CVDPVD

VT4215

VT4225

VT4235

VT4315

VT4325

VT1025

VT1824

VT1825

VT1528

VY1010

VY1525

ECMN300-T

0.05-0.18





O





ECMN400-T

0.07-0.25





O





ECMN500-T

0.08-0.3





O





ECMN600-T

0.09-0.35





O





• : Recommended Grade

O: Optional Grade


Application:

Cutting width is 3mm, 4mm, 5mm, 6mm, CVD and PVD coating, for both parting and Grooving.


FAQ:

What is Grooving in CNC machining?

Grooving is a machining process performed on CNC lathes, the shape of grooves or the majority of grooves will be related to the cutting tool shape. There are three typical types of groove: OD grooves, ID grooves and face grooves, which affects the use of the grooving tool.


What is Grooving Operation in Lathe Machine?

Grooving is a type of specific turning operation that cut grooves or forms a narrow cavity of a certain depth on external, internal surfaces, cylinder, cone, or a face of the part (face grooving or trepanning).
