Standard Edge preperation, first choice for general milling.Recommended for the processing of low carbon steel and stainless steel.cast iron.
Product Information:
Face mills are tools with a large diameter that are used to cut a wide shallow path for facing operations. Facing is used for machining a large flat area, typically the top of the part in preparation for other milling operations.

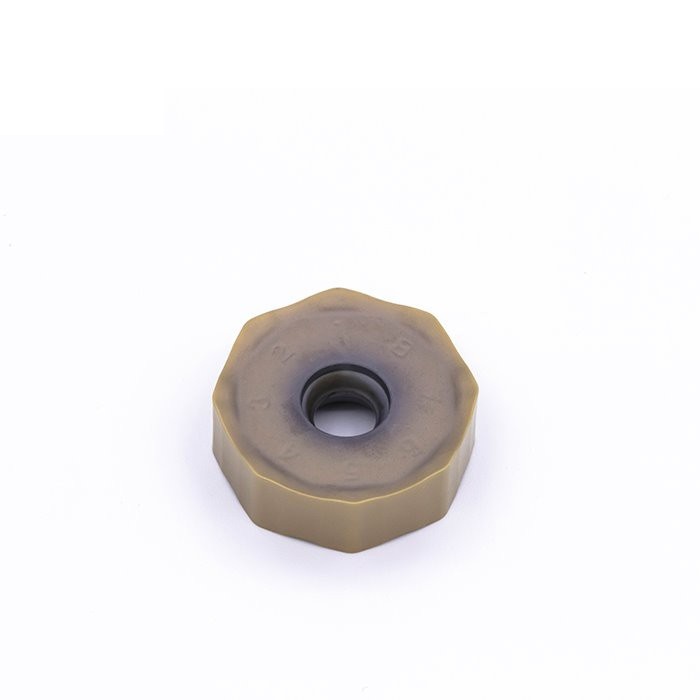

The ONMU 16 edge double sided Milling Insert .ONMU type insert owns double rake angle design and the unique edge angle design. With the sharpness and strength of the cutting edge, the built-in wiper can obtain a good surface finishing.
Specifications:
| Type |
Ap (mm) |
Fn (mm/rev) |
CVD |
PVD | |||||||||
|
VT3020 |
VT3040 |
VT1025 |
VT1325 |
VT1525 |
VT1328 |
VY1010 |
VY1520 |
VY1525 |
VY1028 |
VY1330 |
|||
|
ONMU090520ANTN-GM |
0.80-2.50 |
0.10-0.20 |
• |
• |
O |
O |
|||||||
|
ONMU090520ANTN-GR |
1.00-3.50 |
0.10-0.20 |
• |
• |
O |
O |
|||||||
• : Recommended Grade
O: Optional Grade
Application:
Standard Edge preperation, first choice for general milling.Recommended for the processing of low carbon steel and stainless steel.cast iron.
FAQ:
What is a milling insert?
Milling inserts are used to machine tough some of the toughest materials.Such as steel, stainless steel, cast iron, non-ferrous materials.
How do I choose the milling insert?
Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced.
The indexable milling insert is a cutting tool designed for milling operations. It features multiple cutting edges, which can be rotated or replaced when worn out. This insert is commonly used in milling machines to remove material from a workpiece, producing smooth and accurate surfaces.
