The type of carbide grade and the coating on inserts is originally intended for milling stainless steel, but it also performs when milling other alloys.
Product Information:

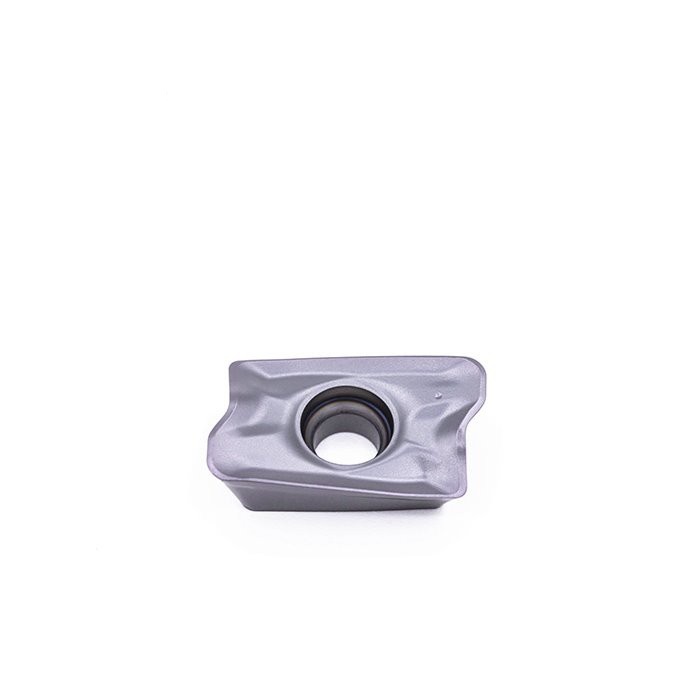

APKT for helical milling is quadrilateral shape of turning insert (85°). Insert with clearance under main cutting edge. Hole through insert and single sided chip breaker.
The 3D helical cutting edge can deal with less cutting force. As such most face milling, shoulder milling cutters are using indexable inserts with wedge type clamping or screw-on type clamping to achieve high-quality machining. Our APKT inserts will be your premium choice for helical milling.
Specifications:
| Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
VT3020 | VT3040 | VT1025 | VT1325 | VT1525 | VT1328 | VY1010 | VY1520 | VY1525 | VY1028 | VY1330 | |||
APKT150412-PM | 1.2-8 | 0.08-0.2 | • | • | O | O | |||||||
APKT150415-KM | 1.2-8 | 0.08-0.2 | • | • | O | O | |||||||
• : Recommended Grade
O: Optional Grade
Application
The type of carbide grade and the coating on inserts is originally intended for milling stainless steel, but it also performs when milling other alloys.
FAQ:
What is helical milling?
Helical milling is a hole-making process in which the milling tool proceeds a helical path while rotates around its own axis, presenting several advantages in relation to conventional drilling. The helical path can be decomposed into axial and tangential directions, combining frontal and peripheral cutting.
What is carbide insert use for?
Carbide inserts are replaceable with a huge variety of styles, sizes and grades.they are used to machine different kinds of metals, including steels, carbon, cast iron, high-temperature alloys and other non-ferrous metals.
The APKT insert is a high-performance indexable milling insert designed for heavy-duty machining. It features a strong cutting edge and excellent chip control, making it suitable for roughing and finishing operations. This insert is commonly used in industries such as automotive, aerospace, and energy.
