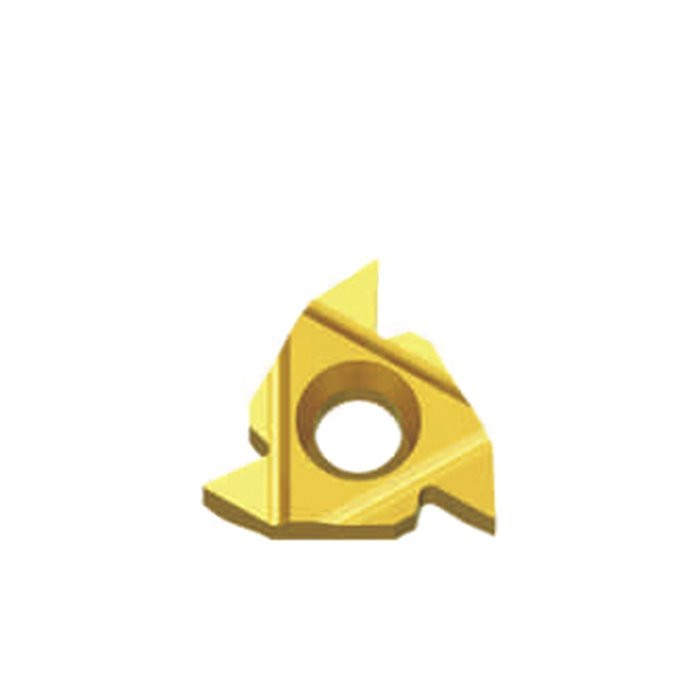

16ER Insert for Efficient External Threading Operations

Excellent anti-built-up features and chipping resistance, suitable for semi-finishing and finishing of steel parts.

16ER Insert for Efficient External Threading Operations Details

Product Information:

16ER turning insert with external pitch - carbide inserts with three cutting edges. 55 degree angle standard metric. External threading insert (right cutting ).Insert purpose is for external turning with durability in thread cutting. Orientation of insert is right. The clearance angle of threading inserts is actually along the edge (flank). it has significant effect on heat diffusion, spread of abrasion as well as tool life, security and pitch quality.


Specifications:

Type

Range of thread pitch

Insert Dimensions (mm)Grade

mm

Pitch/Inch

IC

S

X

Y

VT1320

VT1520

16ERA55

0.5-1.5

48-16

9.525

3.52

0.9

0.8

O

16ERAG55

0.5-3.0

48-8

9.525

3.52

1.7

1.2

O

16ERG55

1.75-3.0

14-8

9.525

3.52

1.7

1.2

O

22ERN55

3.5-5.0

7-5

12.7

4.65

2.5

1.7

O

11IRA55

0.5-1.5

48-16

6.35

3.52

0.9

0.8

O

16IRA55

0.5-1.5

48-16

9.525

3.52

0.9

0.8

O

16IRAG55

0.5-3.0

48-8

9.525

3.52

1.7

1.2

O

16IRG55

1.75-3.0

14-8

9.525

3.52

1.7

1.2

O

22IRN55

3.5-5.0

7-5

12.7

4.65

2.5

1.7

O

• : Recommended Grade

O: Optional Grade


Application:

Excellent anti-built-up features and chipping resistance, suitable for semi-finishing and finishing of steel parts.


FAQ:

What are your main products?

Estool cutting tools company’s main product are turning insert.milling insert.drilling insert.threading inserts.grooving inserts and aluminium machining inserts.


What are thread inserts used for?

The threaded insert is a sleeve with a threaded interior that can accept a bolt or threaded fastener. The thread insert can be made of different materials with different dimensions, and come in different configurations or tooling.
