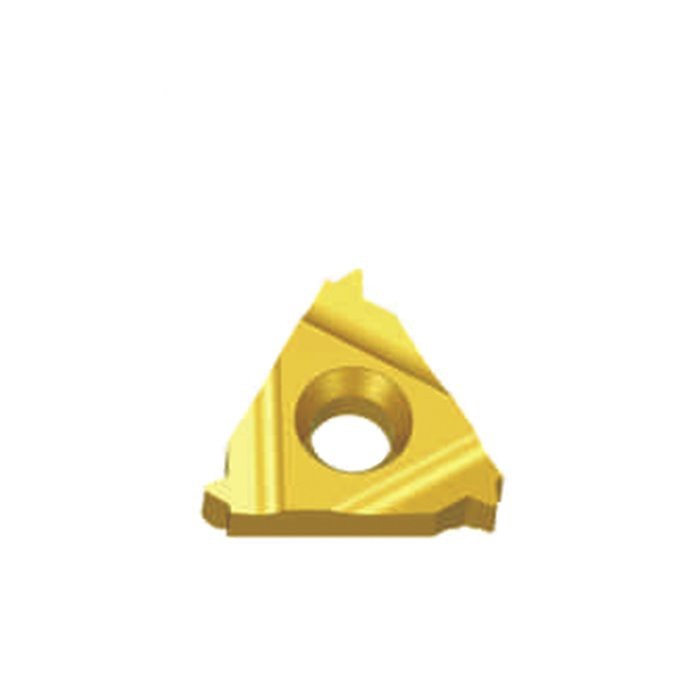

Indexable Threading Insert for Versatile Threading Applications

It’s useful set of threading carbide tungsten turning inserts. It’s intended for turning steel and stainless steel, but it also performs when turning other alloys. The special designed chip breaker ensures reliable chip flow, both in case of external and internal threading. The different series of threading inserts can be applied in different fields.

  • Usage: Turning Inserts

  • Model Number: NPT

  • Chip-Breakers: none

Indexable Threading Insert for Versatile Threading Applications Details

Product Information:

Threading indexable turning inserts with special geometry and rigid mounting in the turning holder, enables turning possibilities of strong and fast production. This tool is highly valued as it is proven in demanding production processes, in long-term use and has upgraded the production process with better results. With its high efficiency, this production-tested threading insert will help extending time between changing periods of your tool and consequently reduce production downtime.

This carbide insert will bring you satisfaction. High temperature resistance and surface coating enables smooth separation of the chip from the work process.


Specifications:

Type

Range   of thread pitch

Insert Dimensions (mm)

Grade

Pitch/Inch

IC

S

X

Y

VT1320

VT1520

16ER8NPT

8

9.525

3.52

1.8

1.3

O

16ER11.5NPT

11.5

9.525

3.52

1.5

1.1

O

16ER14NPT

14

9.525

3.52

1.2

0.9

O

16ER18NPT

18

9.525

3.52

1

0.8

O

16ER27NPT

27

9.525

3.52

0.8

0.7

O

16IR8NPT

8

9.525

3.52

1.8

1.3

O

16IR11.5NPT

11.5

9.525

3.52

1.5

1.1

O

16IR14NPT

14

9.525

3.52

1.2

0.9

O

16IR18NPT

18

9.525

3.52

1

0.8

O

16IR27NPT

27

9.525

3.52

0.8

0.7

O

• : Recommended Grade

O: Optional Grade


Application:

It’s useful set of threading carbide tungsten turning inserts. It’s intended for turning steel and stainless steel, but it also performs when turning other alloys.

The special designed chip breaker ensures reliable chip flow, both in case of external and internal threading. The different series of threading inserts can be applied in different fields.


FAQ:

What is a thread insert called?

A threaded insert that is inserted into an object to add a threaded hole.


How do threaded inserts work in metal?

When the thread inserts for metal.the inserts will create a metal threading point which can be installed and removed many times.
